Sakuragawa Pump (singapore) Pte Ltd

Our Pumps

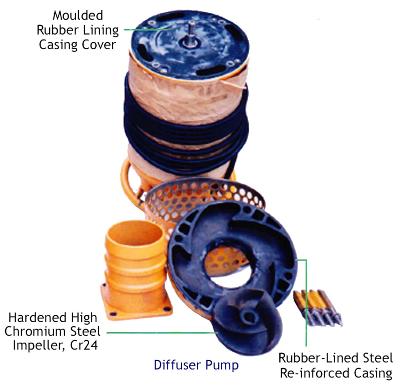

Composite Materials

2PNCTS - Reinforced, Anti-Corrosion, High Temperature & High Pressure Resistant. Waterproof Sealing

SS420J2, Stiff Stainless Steel

Pump Shaft

High Temperature Resistant, Grease Packed

Bearing

Hardened, High Chromium Steel (HCRH)

Impeller

Natural Rubber-Lined, Steel-Reinforced

Casing

Rubber-Lined

Suction Cover

Power Cable

Design Concept

· Large Clearance between impeller & suction cover reduces abrasive wear & tear

Semi-Vortex Pumps

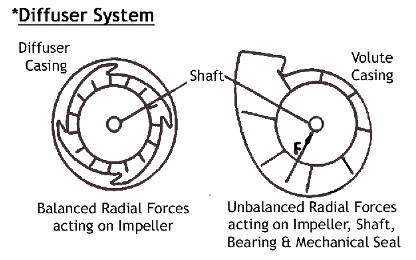

Diffuser VS Volute Systems

· Diffuser System:
- Balanced Radial Thrust

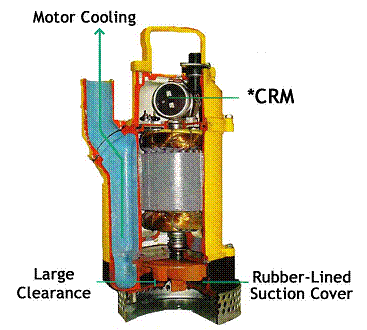

Motor-Cooling Feature & Self-Cleansing Design

· Top Discharge with built-in Water Jacket, force cooling the motor
- Continuous low level pumping without overheating motor

· Self-Cleansing Design removes mud / cement in cooling chamber

· Motor for Single Phase Pumps:
CRM (Capacitor Run Motor)
- Motor starts & runs on capacitor
- No centrifugal switch

· High Pressure Mechanical Seal: 10 Bar

Others

· Pressure Release Feature prevents water from
entering mechanical seal chamber
- Averts potential costly motor damage

Water Escape Feature

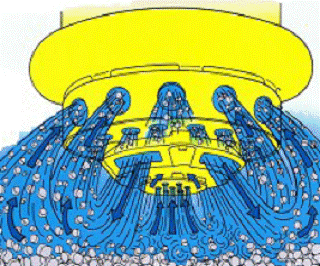

Water-Jet Agitation

· Ensures high percentage of sand/gravel are
being pumped

· Composite Materials

· Design Concept

Moulded Rubber Lining

Casing Cover
